display_animation()

---

This function displays an animation component.

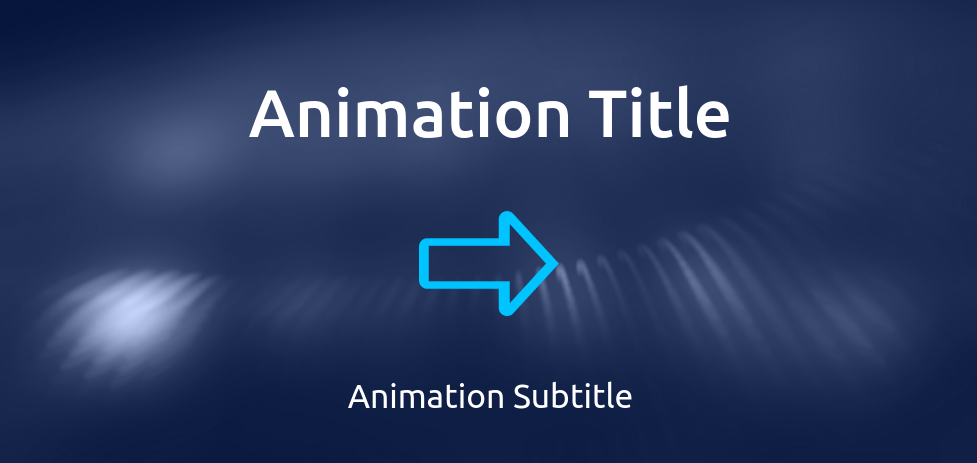

The animation component provides an animated screen and is used to display information about some process/flow, without asking feedback from the user. The component can be used for example to provide a loading screen, display a visual of the robot performing or about to perform a task.

Reference

Explore more about this component here

Arguments

Arguments	Type	Default Value	Description
title	string		Title of the modal (mandatory)
title_size	enum	UI_TITLE_SIZE.MEDIUM	Size of the title
subtitle	string		Subtitle of the modal (optional)
content	Any	None	Data based on chosen format type. If ‘LOTTIE’, fill with JSON data, if GIF, JPEG, or PNG, fill with base64 string. If ‘URL’, fill with URL string.
format	enum	None	Indicates the format of the content, check UI_ANIMATION_TYPE
show_loader	bool	False	show loader on screen
show_back_button	bool	False	Show a button to go back
back_button_text	string	“Back”	Text of the back button
button_size	int	1	Button size (1 = SMALL, 2 = MEDIUM, 3 = LARGE)
languages	list	None	List of languages to be displayed on the screen (optional)
chosen_language	str	None	If list given, string representing chosen language
theme	enum	UI_THEME_TYPE.DARK	Enum to define the theme of the screen, check UI_THEME_TYPE
custom_style	dict	None	Dictionary containing custom styles for the modal (optional)

Return

None

Exceptions

• RayaUIMissingValue

• RayaUIInvalidValue

See the complete list of ui exceptions and the complete list of general exceptions.

Example

How to load and display a lottie file. Note: need to have a valid lottie file in arrow1.json.

...

IMAGE_ARROW_PATH = 'res:arrow1.json'

class RayaApplication(RayaApplicationBase):

    async def setup(self):
        self.UI = await self.enable_controller('ui')
        ....

    async def loop(self):
     ....
        arrow_anim = json.load(open_file(IMAGE_ARROW_PATH))

        await self.UI.display_animation(
            title = 'Go there',
            subtitle='This is a Lottie file',
            content = arrow_anim,
            format= UI_ANIMATION_TYPE.LOTTIE
        )
      ...

    async def finish(self):
      ...

...
