display_interactive_map()

---

This function displays an interactive map component.

Interactive map components display the map area of the robot and the current location of the robot, typically used when the robot performs a navigation task

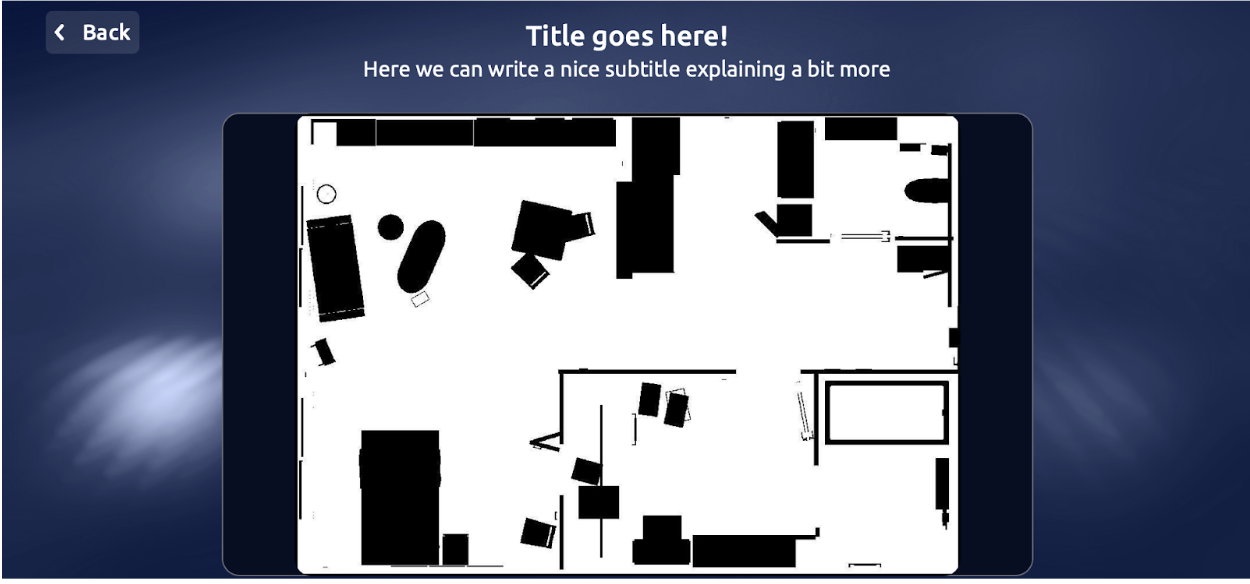

For the example below, an informative title(s) on the top is being used to display information about the map. A map of an apartment is shown below, where the user might desire the robot to navigate around. The component can fetch a map, display robot location, and handle user-map interactions.

Reference

Explore more about this component here

Arguments

Arguments	Type	Default Value	Description
title	string		Title of the display (mandatory)
title_size	enum	UI_TITLE_SIZE.MEDIUM	Size of the title
subtitle	string	None	subtitle of the display (optional)
map_name	str	None	name of map to fetch
show_robot_position	bool	False	Show the current robot position
view_only	bool	False	The navigate to point modal is disable
show_back_button	bool	False	Show a button to go back
back_button_text	string	“Back”	Text of the back button
button_size	int	1	Button size (1 = SMALL, 2 = MEDIUM, 3 = LARGE)
languages	list	None	a list of languages to be displayed on the screen (optional)
chosen_language	Any (str)	None	if language list given, a value representing the chosen language
theme	enum	UI_THEME_TYPE.DARK	Enum to define the theme of the screen, check UI_THEME_TYPE
custom_style	dict	None	Dictionary containing custom styles for the modal (optional)
wait	bool	True	boolean indicating to wait for user response (optional)
callback	callable	None	callable function handling response (optional)

See the complete list of general enumerations.

Return

Dictionary that contains the action performed by the user. For interactive map, the second entry contains the coordinates of where the user selected.

Example:

{"action": "navigate", "coordinates": {"x": 662, "y": 167}, "app_id": "APP ID"}

or

{"selected_option": {"id": 2, "name": "Red"}, "action": "item_selected", "app_id": "doctest"}

Exceptions

• RayaUIMissingValue

• RayaNeedCallback

See the complete list of ui exceptions and the complete list of general exceptions.

Callback Arguments

callback

Argument	Type	Description
data	dict	Dict containing the result of the action

Example

...

class RayaApplication(RayaApplicationBase):

    async def setup(self):
        self.UI = await self.enable_controller('ui')
        ....

    async def loop(self):
     ....
        response = await self.UI.display_interactive_map(
               title = "Title goes here!",
               subtitle =  "Here we can write a nice subtitle explaining a bit more",
               map_name =  "unity_apartment",
               show_robot_position = True,
               view_only = False,
               show_back_button = True
       )
       self.log.info(response)
      ...

    async def finish(self):
      ...

...
"""
This shows:
{'action': 'navigate', 'coordinates': {'x': 662, 'y': 167}, 'app_id': 'APP ID’}  when the corresponding coordinate is clicked.
"""
