display_input_modal()

---

This function displays an input modal component.

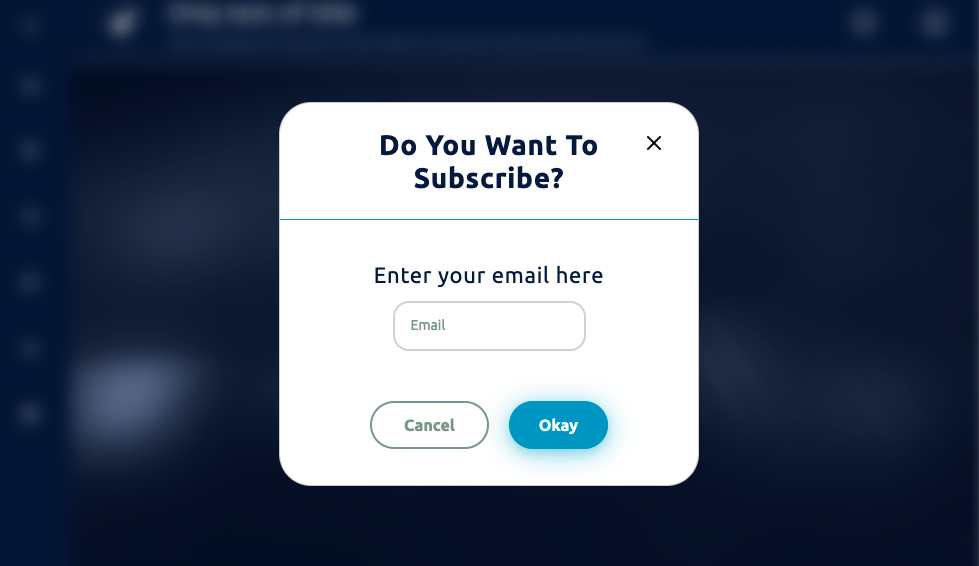

The input modal component provides a dialog screen asking from the user to enter some information. The component can be used for example to ask the user ‘what is the robot name?’

Reference

Explore more about this component here

Arguments

Arguments	Type	Default Value
title	string		Title of the modal (mandatory)
title_size	enum	UI_TITLE_SIZE.MEDIUM	Size of the title
subtitle	string		Subtitle of the modal (optional)
submit_text	string	“Yes”	Submit text button
cancel_text	string	“No”	Cancel text button
placeholder	string		Text that will appear in the input field before the user enter some data
input_type	enum	UI_INPUT_TYPE.TEXT	Enum to define the type of the input allowed, check UI_INPUT_TYPE
show_back_button	bool	False	Show a button to go back
back_button_text	string	“Back”	Text of the back button
button_size	int	1	Button size (1 = SMALL, 2 = MEDIUM, 3 = LARGE)
languages	list	None	List of languages to be displayed on the screen (optional)
chosen_language	str	None	If list given, string representing chosen language
theme	enum	UI_THEME_TYPE.DARK	Enum to define the theme of the screen, check UI_THEME_TYPE
custom_style	dict	None	Dictionary containing custom styles for the modal (optional)
wait	bool	True	Bool indicating to wait for user response (optional)
callback	callable	None	Callable function to handle the response (optional)

See the complete list of enumerations.

Return

Dictionary that contains the action performed by the user and the value he entered. The action can be: canceled/confirmed/closed.

Example:

{"action": "confirmed", "value": "4"}

Exceptions

• RayaUIMissingValue

• RayaNeedCallback

See the complete list of ui exceptions and the complete list of general exceptions.

Callback Arguments

callback

Argument	Type	Description
data	dict	Dict containing the result of the action

Example

...

class RayaApplication(RayaApplicationBase):

    async def setup(self):
        self.UI = await self.enable_controller('ui')
        ....

    async def loop(self):
     ....
        response = await self.UI.display_input_modal(title="How many boxes?")
        self.log.info(response)
      ...

    async def finish(self):
      ...

...
'''
{"action": "confirmed", "value": "4"}
'''
